SY-FSY-WSY型立式玻璃鋼液下泵
|
詳細介紹: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
一、FSY型、WSY型立式玻璃鋼液下泵產品概述：
FSY型、WSY型立式玻璃鋼液下泵為本單位生產的WSY型、FSY型兩種型式的泵，1．WSY型立式玻璃鋼液下旋渦泵。2．FSY型立式玻璃鋼液下離心泵，FSY型、WSY型立式玻璃鋼液下泵因伸入貯罐，貯槽的深度長短不同，設計液下深度800mm--3000mm之間任意選擇。FSY型、WSY型立式玻璃鋼液下泵只要液體高于泵體，即可不灌液而起動送液，平蓋板下設有泄漏孔，液體不會向貯罐外泄漏。
本泵與介質接觸的零部件，系用聚乙烯醇縮丁醛改性酚醛玻璃纖維，經高溫模壓成型的酚醛玻璃鋼制件，聯接管、出液管采用半干法卷制工藝制成的酚醛玻璃鋼管，葉輪軸套的裝配均用酚醛膠泥和泵軸粘成一體，液下各部裝配均用酚醛膠泥粘結，伸入液下全無金屬與介質接觸，耐腐性能JD可靠，產品具有輕質、高強、不變形、耐溫、耐腐蝕等優(yōu)良性能，FSY型、WSY型立式玻璃鋼液下泵在防腐方面可部分替代含鉬不銹鋼、鈦及鈦合金等貴重金屬。
FSY型、WSY型立式玻璃鋼液下泵在傳動和旋轉方向：泵通過爪型彈性聯軸器由電動機直接驅動，從電動機端看泵為順時針方向旋轉。
二、FSY型、WSY型立式玻璃鋼液下泵主要用途：
FSY型、WSY型立式玻璃鋼液下泵廣泛用于化工、石化、冶煉、染料、農藥、制藥、X土、化肥等行業(yè)，在貯罐上輸送不含懸浮固體顆粒，不易結晶，溫度不高于100℃的各種非氧化性酸(鹽酸、X硫酸、甲酸、醋酸、丁酸)等腐蝕介質的Z理想設備。

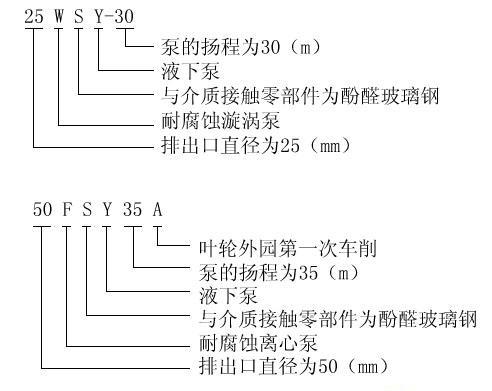

三、FSY型、WSY型立式玻璃鋼液下泵型號意義:
 FSY型、WSY型立式玻璃鋼液下泵,WSY型立式玻璃鋼液下旋渦泵,FSY型立式玻璃鋼液下離心泵性能參數

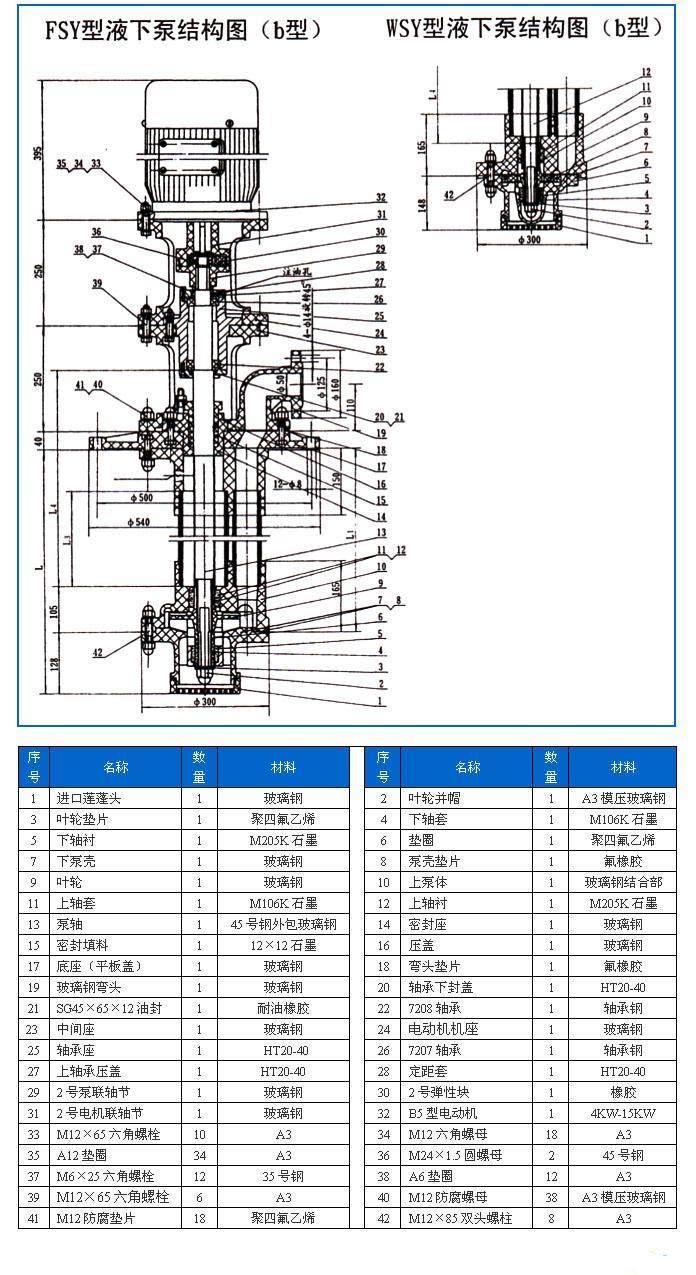

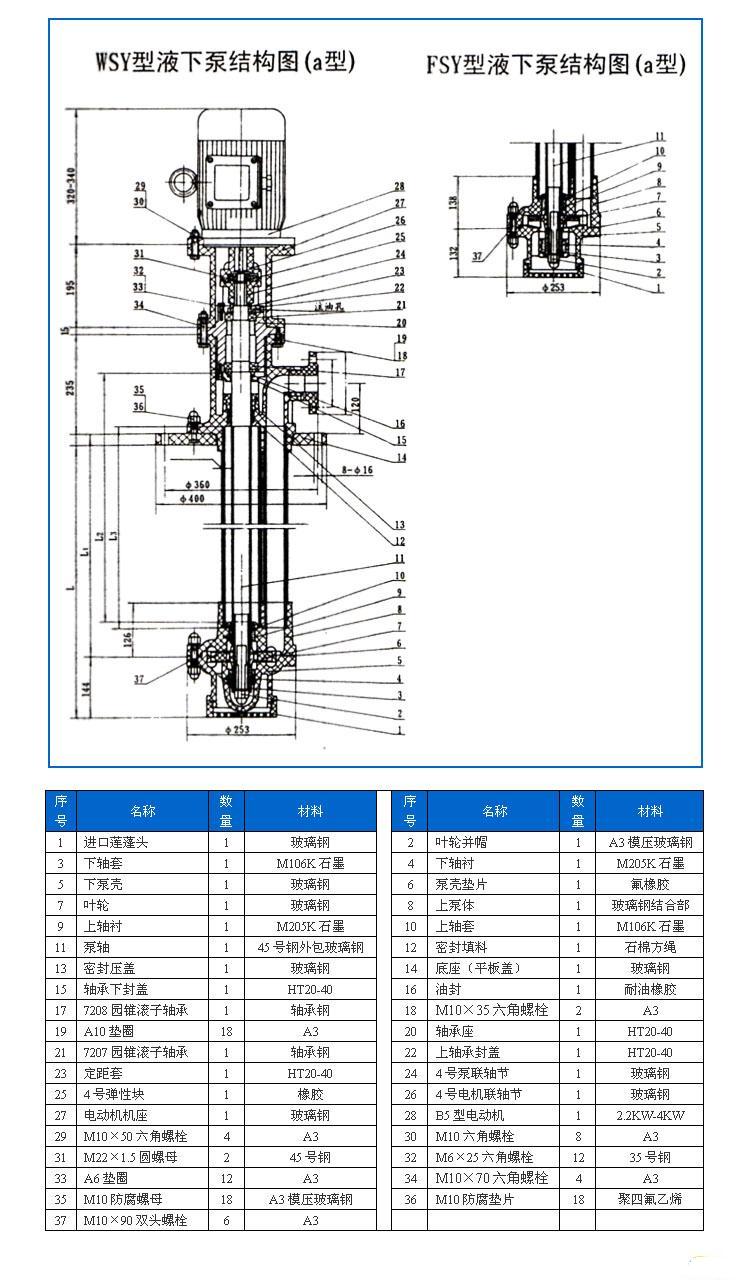

WSY型立式玻璃鋼液下旋渦泵,FSY型立式玻璃鋼液下離心泵的(A型)外型圖
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FSY型、WSY型玻璃鋼液下泵(FSY s mould and WSYs mould tempered glass liquid decends the pump)
本單位生產的WSY型、FSY型兩種型式的泵,1.WSY型泵為立式玻璃鋼液下旋渦泵。2.FSY型泵為立式玻璃鋼液下離心泵,該泵因伸入貯罐,貯槽的深度長短不同,設計液下深度800mm～3000mm之間任意選擇。只要液體高于泵體,即可不灌液而起動送液,平蓋板下設有泄漏孔,液體不會向貯罐外泄漏。
本泵與介質接觸的零部件,系用聚乙烯醇縮丁醛改性酚醛玻璃纖維,經高溫模壓成型的酚醛玻璃鋼制件,聯接管、出液管采用半干法卷制工藝制成的酚醛玻璃鋼管,葉輪軸套的裝配均用酚醛膠泥和泵軸粘成一體,液下各部裝配均用酚醛膠泥粘結,伸入液下全無金屬與介質接觸,耐腐性能JD可靠,產品具有輕質、高強、不變形、耐溫、耐腐蝕等優(yōu)良性能,在防腐方面可部分替代含鋁不銹鋼、鐵及鈦合金等貴重金屬。
泵在傳動和旋轉方向:泵通過爪型彈性聯軸器由電動機直接驅動,從電動機端看泵為順時針方向旋轉。
本泵廣泛用于化工、石化、冶煉、染料、農藥、制藥、X土、化肥等行業(yè),在貯罐上輸送不含懸浮固體顆粒,不易結晶,溫度不高于100℃的各種非氧化性酸(鹽酸、X硫酸、甲酸、醋酸、丁酸)等腐蝕介質的Z理想設備。
The product summary :
1.WSY s mould pump is the vertical tempered glass liquid underspin whirlpool pump to the two kinds of pumps of mould type on WSY s mould and the FSY s mould that this unit produced . 2.FSY the mould pump is under the vertical tempered glass liquid centrifugal pump , this pump is because of stretching the jar laying aside , and degree of depth length laying aside the slot is different , design liquid down arbitrary selection between the degree of depth 800mm - 3000mm . Namely as long as the liquid is more than the pump aspect , does not exactly irrigate liquid and starts the liquid sending , the flat blind flange has down a leakage hole , and the liquid will not outside Xiang Zhuguan leak .
This pump and the parts of medium contact is tied contracting the modified phenolic aldehyde glass fibre of Ding Quan with the polyvinyl alcohol , and being mould pressinged the phenolic aldehyde tempered glass finished piece of shaping through high temperature , and connectioing the phenolic aldehyde tempered glass pipe that Guan Chu s liquid pipe used half trunk law volume system technology to be made , the assembly of impeller axle sleeve is all glued into organic whole with phenolic aldehyde clay and the pump axle , and the next various assembly of liquid all glues the knot with the phenolic aldehyde clay , and stretching liquid decending Quan Wu s metal and the medium contact , it is absolutely reliable to endure the rotten capability , the product possesses gently nature and excellings in and unchangeable the fine capabilitys such as shape and endure Wen s corrosion preventive etc , can partly replace Han s aluminium stainless steel at the aspect of preserve and iron and the titanium alloy etc the valuable metal .
The pump is at transmission and the revolving direction : The mould elasticity shaft coupling of pump by way of the paw is by electromotor direct drive , and sees that the pump is the clockwise revolving from the electromotor end .
The trades such as the chemical industry and Shi Hua smelts , dyestuff , pesticide , pharmacy , rare soil and chemical fertilizer etc that this pump is extensively used , lays aside on the jar carrys not Han s suspended solid anything small and roundish , not easily crystallizes , the temperature not mores than various non- oxides of 100 ℃ acid ( hydrochloric acid , dilute sulfuric acid , formic acid , acetic acid and butyric acid ) etc the most ideal equipment of corruption medium .
